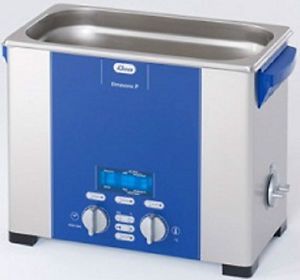

Elma Ultrasonic Cleaner - Elmasonic P Ultrasonic Bath P60H, 1033240

Elmasonic P Ultrasonic Baths, 110-120 V, includes cover. Maximum power, digital display, dual frequency, variable power, full featured.

Elmasonic P

Ultrasonic cleaning units in six different sizes
Elmasonic P30 (3 l), P60 (6 l), P70 (7 l), P120 (12 l), P180 (18) and P300 (30 l)

Digital displays, self-explanatory operation, clear indication of all parameters, set and actual values at a glance.

Two different ultrasonic frequencies in one unit (frequency can be changed during operation):

• 37 kHz - for coarse contaminations, for dissolving, blending, dispersing and degassing
• 80 kHz noise-reduced operation, ideal for quiet work areas, prolonged ultrasonic cleaning cycle, perfect for the cleaning of hollow spaces, e.g. capillaries

Features:

• Normal standard operation mode for laboratory applications such as blending, dissolving, dispersing
• Pulse activatable power increase of approx. 20% by inforcement of the peak performance
• Sweep for an even distribution of the power in the cleaning tank
• Degas for the quick degassing of HPLC samples or solvents
• Power control for sensitive surfaces the ultrasonic power can be reduced in preset steps

Additional features:

• Pause interrupts the current application
• Temperature-controlled start-up automatically starts the ultrasonic activity as soon as the preset temperature is reached

Elmasonic Ultrasonic Cleaner Technical Specifications

• Mains voltage (Vac) 230 or 115 V
• Ultrasonic frequency (kHz) 37 / 80
• Power consumption total P60H (W) 680 / 640
• Ultrasonic power effective (W) 180 / 140
• Ultrasonic peak performance max.(W) 720 / 560
• Heating power (W) 500
• Unit outer dimensions W/D/H (mm) 365 / 186 / 271
• Tank internal dimensions W/D/H (mm) 300 / 151 / 150
• Basket internal dimensions W/D/H (mm) 255 / 115 / 75
• Max. filling volume tank (lit.) 5.75
• Weight (kg) 5.1
• Material tank Edelstahl V2A
• Material casing Edelstahl V2A
• Drain 3/8
• CE-compliant ?
• Protection class IP 20
• Sound pressure level (LpAU) * (dB) 63 / 59
• Ultrasonic sound level (LpZ) ** (dB) 103 / 94
