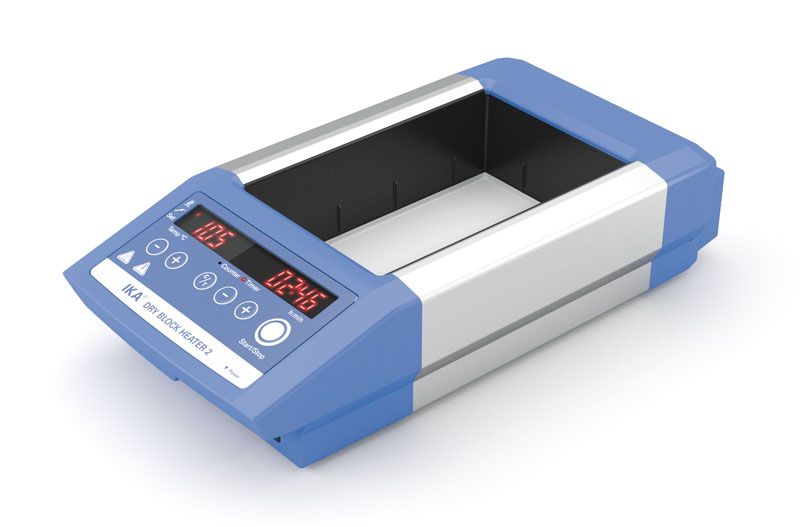

IKA Dry Block Heater 2 Digital block heater for two aluminum blocks provides precise temperature control in small vessels. Included PT-1000 temperature sensor allows temperature control directly in the sample vessel. It is used with PCR tubes, PCR strips, Greiner tubes, microplates and cuvettes. The block heater is ideal for melting and boiling point determination, enzyme reactions, incubation and activation of cultures, immunoassays, DNA denaturation, culture media tests, coagulation tests, blood-urea-nitrogen determinations and in situ hybridizations. � Stepless adjustable temperature up to 120 �C � Timer: Countdown, adjustable from 1 min to 99h 59min � Counter: Display of heating time � Highly versatile with a large number of blocks � Error code display � Fixed safety circuit � Acoustic signal at end of test Technical Specification: Number of blocks 2 Heat output 250 W Heating temperature range room temp. +5� - 120 �C Temperature display yes Adjustment and display resolution 1 K Connection for ext. temperature sensor CT (DIN12878) PT 1000 variation;DIN EN 60751 Kl. A ? � (0,15 +0,002xITI) K Temperature stability within the blocks at 37�C * 0.2 ��C Temperature stability within the blocks at 60�C * 0.4 ��C Temperature Uniformity @ 37�C * 0.2 K Temperature Uniformity @ 60�C * 0.4 K Heatingrate / Heat up time with external sensor * 4.5 K/min Set-up plate material Aluminium alloy Set-up plate dimensions 96 x 152 mm Fixed safety circuit 150 �C Timer yes Time setting range 1 - 5999 min * Measured in IKA DBH Testingblock Refer Manual for more details Dimensions (W x H x D) 151 x 73 x 304 mm Weight 1.3 kg Permissible ambient temperature 5 - 40 �C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 21 RS 232 interface no USB interface no Voltage 220 - 240 / 115 / 100 V Frequency 50/60 Hz Power input 250 W
