IKA HS 260 control Laboratory shaker with positioning point Compact, flat reciprocal shaker with ideal swivel motion, for a maximum shaking weight of 7.5 kg. Electronic adjustment of speed and timer Digital display makes it possible to read the speed, timer function and operating modes Electronic time switching clock: 0 - 9 h 59min or continuous operation (endless) With integrated endpoint positioning (for automated robot-controlled sampling) All functions can be controlled and documented with labworldsoft� software Wide range of attachment combinations makes it possible to use almost all shapes and sizes of vessels Attachments are not included, please order separately Technical Specification: Type of movement reciprocating Shaker diameter 20 mm Permissible shaking weight (incl. attachment) 7.5 kg Motor rating input 45 W Motor rating output 10 W Permissible ON time 100 % Speed range 10 - 300 rpm Speed display LCD Timer yes Timer display LCD Time setting range 1 - 599 min Operating mode timer and continuous operation Shaking table lock yes Dimensions (W x H x D) 360 x 100 x 420 mm Weight 8.8 kg Permissible ambient temperature 5 - 50 �C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 21 RS 232 interface yes Analog output yes Voltage 220 - 240 / 100 - 120 V Frequency 50/60 Hz Power input 45 W

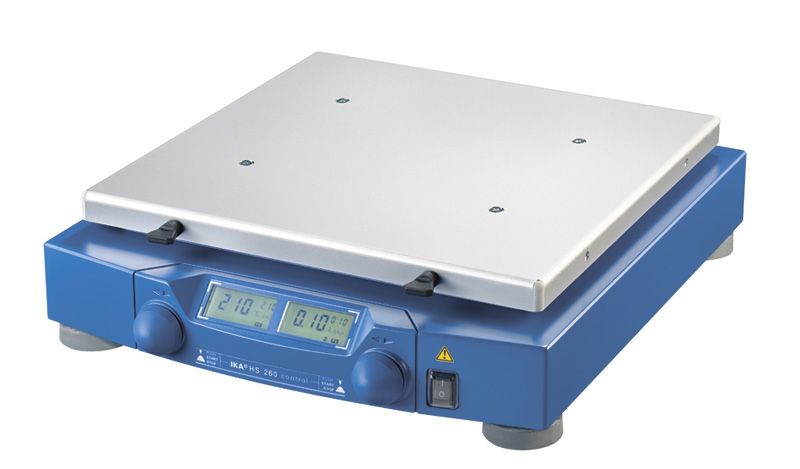

IKA HS 260 control Laboratory shaker with positioning point
