IKA MF 10 basic Microfine grinder drive Continuously operating universal grinder with a speed range of 3.000 - 6.500 rpm. � Powerful drive � Easy to clean working surface made of stainless steel � Two different grinding heads can be attached to the drive � Heads are easily changeable � Grinding heads not incl. with delivery Technical Specification: Process type inline Operating principle cutting/impact Motor rating input 1000 W Motor rating output 500 W Speed range 3000 - 6500 rpm Power-on time ON 120 min Power-om time OFF 30 min Milling chamber, can be cooled with water no Mill feed can be cooled in milling chamber with dry ice yes Mill feed can be cooled in milling chamber with liquid nitrogen no Dimensions (W x H x D) 320 x 380 x 300 mm Weight 9.7 kg Permissible ambient temperature 5 - 40 �C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 22 RS 232 interface no Analog output no Voltage 230 / 115 V Frequency 50/60 Hz Power input 1000 W

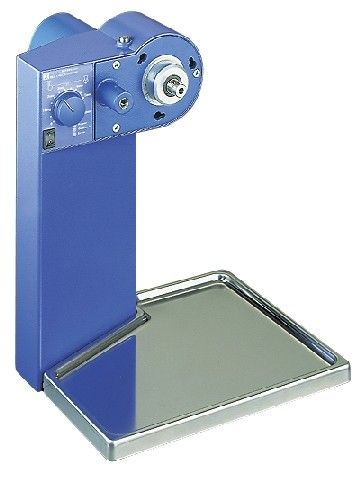

IKA MF 10 basic Microfine grinder drive
