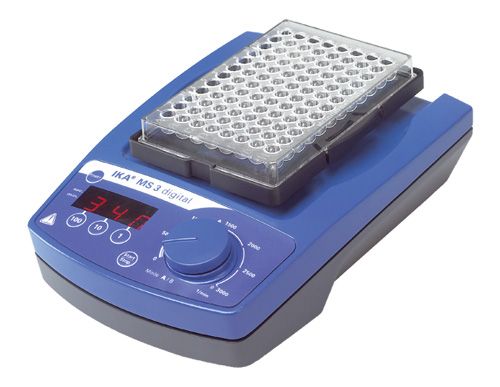

IKA MS 3 digital Small shaker Compact, universal small shaker suitable for shaking tasks with all small vessels and microtiter plates � Wide range of attachments � Attachment detection � Timer with countdown function � Continuous or touch operation (with standard attachment) � Two operating modes: Mode A (safe mode with attachment detection) the maximum speed of 3.000 rpm is only reached with the standard attachment in touch mode. When using other attachments the speed is limited to 1.300 rpm. Mode B (without attachment detection) A speed of 3,000 rpm is possible with all attachments, depending on the application (see accessory list in the manual). � Stable in all speed ranges � Sturdy zinc die cast casing Technical Specification: Type of movement orbital Shaker diameter 4.5 mm Permissible shaking weight (incl. attachment) 0.5 kg Motor rating input 10 W Motor rating output 8 W Permissible ON time 100 % Speed min (adjustable) 200 rpm Speed range 0 - 3000 rpm Speed display scale Timer yes Timer display 7 segment LED Time setting range 1/60 - 999 min Operating mode timer and continuous operation Touch function yes Shaking table lock no Working with microtiter plates yes Number of microtiter plates 1 Dimensions (W x H x D) 148 x 63 x 205 mm Weight 2.9 kg Permissible ambient temperature 5 - 40 �C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 21 RS 232 interface no Analog output no Voltage 100 - 240 V Frequency 50/60 Hz Power input 20 W DC Voltage 24 V= Current consumption 800 mA

IKA MS 3 digital Small shaker

IKA MS 3 digital Small shaker
