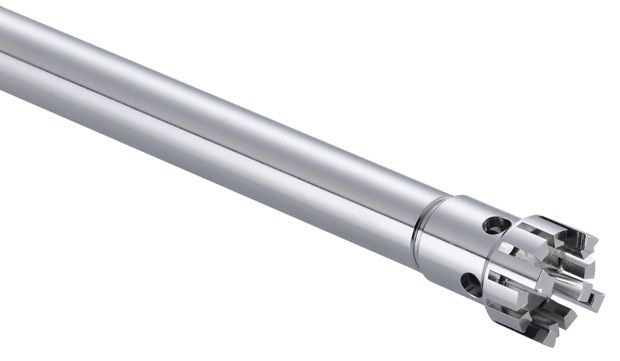

IKA S 25 KV - 25 G Dispersing element Suitable for dispersing instrument T 25 digital Working range: 50 - 2000 ml Stator diameter: 25 mm Immersion depth: 40 - 225 mm Materials in contact with medium: FFPM / SIC, AISI 316L Suitable for solvents Max. temperature: 220 �C Sterilization methods: wet chemical Technical Specifications: Volume range min. (H2O) 0.05 l Volume range max. (H2O) 2 l Stator diameter 25 mm Rotor diameter 17 mm Gap between rotor and stator 0.5 mm allowable Speed max. 25000 rpm Circumferential speed max. 22.2 m/s Immersion depth min. 40 mm Immersion depth max. 225 mm Shaft length 270 mm Material in contact with medium FFPM / SIC, AISI 316L pH min. 2 pH max. 13 Suitable for solvents yes Suitable for abrasive substances no Working temperature max. 220 �C Sterilization methods all methods Vacuum 1 mbar Pressure max. 6 bar Ultimate fineness, suspensions min. 15 �m Ultimate fineness, suspensions max. 50 �m Ultimate fineness, emulsions min. 1 �m Ultimate fineness, emulsions max. 10 �m

IKA S 25 KV - 25 G Dispersing element
