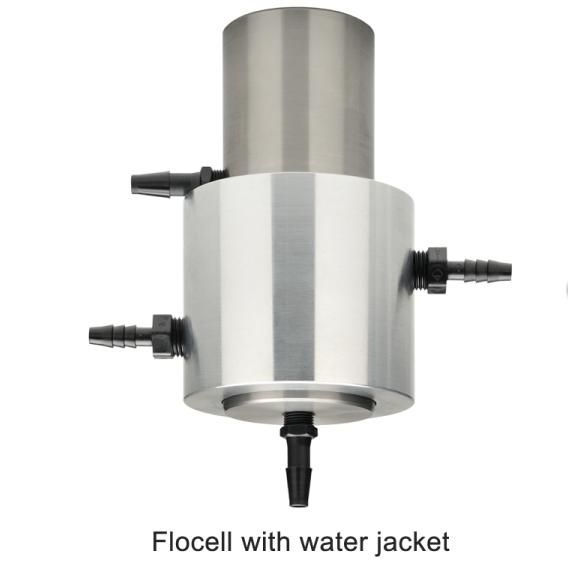

Qsonica Water Jack et for #4650 Flocell for Q500 & Q700 Sonicator, 4655 Flocells offer inline or continuous, large volume, batch sample processing. Flocells are ideal for mixing and dispersing applications. Batch volumes can be recirculated through the system multiple times if increased sonication time is needed. Multiple units can be used in succession to reduce processing time and/or maintain an even higher flow rate. The liquid sample is pumped into the Flocell through the inlet at the bottom of the unit. As the sample passes through the cavitation field, it is processed. The processed liquid exits the unit through an outlet port. The sample can be recirculated multiple times if necessary. The degree of processing can be controlled by adjusting the intensity of sonication as well as flow rate. The Low Volume Flocell (LVFC) is available for use with either the Q500 or Q700 system and does not include a probe. A replaceable tip probe (#4423) or solid probe (#4424) must be ordered separately. These probes feature a special threaded connection for use with the LVFC. A water jacket (#4655) is available if the process requires cooling. The water jacket slides over the LVFC and is used to recirculate cold water to around the system. This helps reduce the heat generated during ultrasonic processing. The water jacket has hose barb fittings. The LVFC is recommended for customers processing approximately 2-20L batch volumes. Routine applications include cell lysis, mixing, solubilizing and deagglomerating/dispersing nanoparticles. Specifications: 4495 Low volume Continuous Flocell Dimensions: 9" H x 2" Dia. Material: 304 stainless Steel Operating pressure: up to 100psi Internal volume: 65ml Max. flow rate: 0.5L/min Hose barb fittings for ID tubing 4223: Replaceable tip probe for #4495 flocell 4224: Solid tip probe for #4495 flocell 4655: Water Jacket for #4495
