SCILOGEX Homogenizer, D500, 85020101

SCILOGEX Homogenizer, D500, 85020101

$2,249.00 $3,136.00
In Stock
SKU#: 85020101
Details

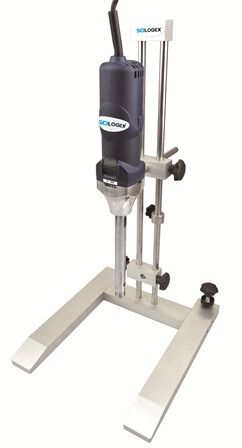

SCILOGEX D500 Homogenizer, 85020101

The Scilogex D500 Homogenizer has a maximum speed of 29,000rpm and reduces processing time significantly. The smooth motor drive provides safe and comfortable operation. An overload protection feature increases the life span of the motor. Smooth acceleration also prevents unnecessary spills. A flexible configuration of different generators and probes make the D500 highly adaptive to most applications. The generator shaft is constructed of 316L stainless steel. Reliable results are assured with extremely high precision and speed. Assembly and disassembly of rotors requires no special tools.



Features
  • Ideal for mixing, emulsification, shredding, or chopping
  • Practical answer for small samples
  • Easy to hold and light weight for one hand operation
  • Generators are made of 316L Stainless Steel with Teflon bushings
  • Autoclavable stainless steel shafts. Inert to aggressive solutions
  • All shafts are interchangeable shafts and are easily removed for cleanup
  • High speed motor. Speed control from 10,000 to 29,000 rpm
  • Suitable for solvents & abrasive substances
  • 2 YEAR WARRANTY




Specifications
  • Speed range : 10,000-29,000rpm
  • Sample volume range : 0.1 - 250ml
  • Speed control : 6 position control dial
  • Motor type : Universal motor, 130 Watt
  • pH range : 2-13
  • Fineness : Suspensions & Emulsion 10-15?m & 1-10?m
  • Noise emission : < 72 dB(A) at 29,000 rpm
  • Dimensions : 2.5L x 2.5W x 9H inches (drive only)
  • Weight : 20lbs (with stand) 1.8lbs (drive only)
  • Voltage : 110Volts, 60Hz




Ordering Information
  • 85020101: SCILOGEX D500 Homogenizer, package, DS-500/1 generator probe, for solid/liquid media, volumes 10-5000ml and H-600 stand, 110V/60Hz
  • 85020201: SCILOGEX D500 Homogenizer package, DS-500/2 generator probe, for water in oil or oil in water emulsions, volumes 10- 5000ml and H-600 stand, 110V/60Hz
  • 85020301: SCILOGEX D500 Homogenizer Drive Motor, 110V/60Hz


Accessories:
18900115 : DS-500/1 generator probe 1 for solid/liquid media, volumes 10-5000ml
18900116 : DS-500/2 generator probe 2 for Water in Oil or Oil in Water emulsions, volumes 10-5000ml
18900117 : DS-500/5 generator probe 5mm for solid/liquid media, volumes 1-50ml
18900118 : S20C 20mm open slotted coarse stator
18900119 : S20F 20mm open slotted fine stator
18900120 : S30C 30mm open slotted coarse stator
18900121 : S30F 30mm open slotted fine stator
18900122 : S40C 40mm open slotted coarse stator
18900123 : SR20 20mm standard rotor
18900124 : SR30 30mm standard rotor
18900125 : CR20 20mm knife rotor
18900126 : CR30 30mm knife rotor
18900127 : MR20 20mm mixing rotor
18900128 : MR30 30mm mixing rotor
18900129 : ER20 20mm emulsifying rotor
18900130 : ER30 20mm emulsifying rotor
85020401 : H-600 Homogenizer Stand
More Information
Shipping cost 0
Warranty Two (2) years manufacturers warranty
