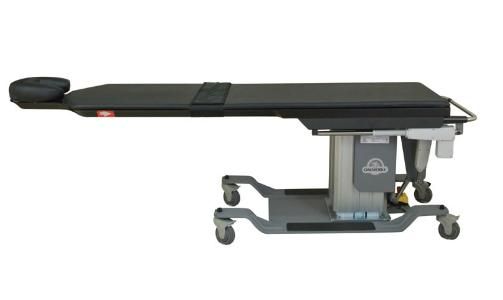

Oakworks 4 Movement C-Arm Fluoroscopy/Imaging Table, OW-CFPM400

The Oakworks CFPM 400 C-Arm Imaging Table is the best valued 4 movement imaging table in the mobile imaging table market. Incorporating OAKWORKS brand reputation for quality & reliability, the CFPM400 is designed to accommodate mobile c-arm and ceiling suspended imaging systems. Its dynamic height range of 26" to 44" accommodates low height patient wheelchair transfers to maximum height c-arm requirements for full lateral imaging. Mounted on a low profile base, this mobile table can be secured via 4 locking casters and provides 56" of metal free imaging area. The CFPM400 is FDA listed, ETL approved and CE marked. Included Accessories
Table top pad, Head Support pads, 1 each of 2 (5cm) thick x 12 (31 cm) (square) and 4 (10 cm) thick x 12 (31 cm) (square), and 1 crescent face rest cushion. The three positioning pads provide optimal positioning capabilities for both prone and supine applications Choice of top configuration:
CFPM400R, 22 x 84 Carbon Fiber Top with Integrated Head Rest (56" of metal free imaging space)
CFPM400, 24 x 80 Carbon Fiber Top with Rectangular Top (52" of metal free imaging space) Specifications

• Patient Weight Capacity: 500 lbs. (227kg.)
• Carbon Fiber Top: 22" x 84" (56cm x 214cm)
• Motion 1: height range 26" - 44" (66cm - 112cm)
• Motion 2: Trendelenburg tilt +15/-12
• Motion 3: 10" (25cm) longitudinal travel
• Motion 4: lateral tilt 15
• Controls: 1 foot (4 motion), 1 hand (4 motion)
• Table Weight: 475 lbs. (216kg.)
• Warranty: 4 years parts, 1 year labor
• Certifications: FDA listed, cETL approved, CE marked

CFPM400 Single Tower Carbon Fiber Integrated Head Rest Top, 22"W, 84"L 26-44" Ht, 500 lbs patient weight capacity, 15 degree Trendelenberg, 12 degree Reverse Trendelenberg, +/- 15 degree Lateral Tilt, 10" Electric Longitudinal Traveling Top, 110 volt electronics, 1 foot control, 1 hand control, table top pad, table strap, & 3 radiolucent positioning pads (face crescent, 2" supine block, 4" supine block)

CFPM400 Single Tower Carbon Fiber Rectangular top 24"W, 80"L 26-44" Ht, 500 lbs patient weight capacity, 15 degree Trendelenberg, 12 degree Reverse Trendelenberg, +/- 15 degree Lateral Tilt, 10" Electric Longitudinal Traveling Top, 110 volt electronics, 1 foot control, 1 hand control, table top pad, table strap, & 3 radiolucent positioning pads (face crescent, 2" supine block, 4" supine block)

• Best valued 4 movement imaging table in the mobile imaging table market
• Exceptional value for a 500 lbs patient weight capacity table
• Superior image quality for fluoroscopy guided procedures
• Ideal for pain management practices, surgical centers, and other multi-disciplinary medical facilities
• Compatible with all major C-arm products
• Now available with either rectangular top or integrated headrest top
