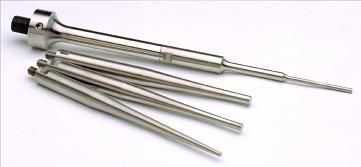

Branson Ultrasonic Tapered 3/16" dia. microtip for use with tapped horn, 101-148-069

Microtip probes are available in tapered and stepped configurations and are designed to process samples contained in small diameter vessels at extremely high intensity (refer to chart for recommended volumes).

Tapered microtips screw into standard 1/2" step horns with tapped ends.

The double stepped microtip consists of a coupler and a stepped tip and screws directly into the converter. It has lower amplitude than the tapered tip, but is capable of reaching into small diameter vessels of greater depth and can process solutions down to 0.1 ml. The horns and microtips detailed on this sheet are also compatible with the earlier Branson Sonifier, Model 350.

TYPICAL APPLICATIONS:

Micro-tapered is recommended for processing spores, fungi, yeast, muscle, and connective tissue.
Double Stepped Microtip � is recommended for red and white blood cells, tissue culture cells, HELA cells, and cells which have a low to medium resistance to breakage. Attaches to converter only.

DOUBLE STEPPED MICROTIP
Tip Diameter: 1/8" (3 mm)
Intensity: Very high
Ampl. Range*: 64-247
Volume (Liquid): 0.1 - 10 ml
Part Number: 101-063-212

TAPERED MICROTIP
Tip Diameter	1/8" (3 mm)	3/16" (5 mm)	1/4" (6.5 mm)
Intensity	Ultra high	Very high	High
Ampl. Range*	116-494	59.5-302	59.5-247
Volume (Liquid)	0.25 - 10 ml	5 - 20 ml	10 - 50 ml
Part Number	101-148-062	101-148-069	101-148-070

Branson Ultrasonic Tapered 3/16 inch dia. microtip for use with tapped horn, 101-148-069
