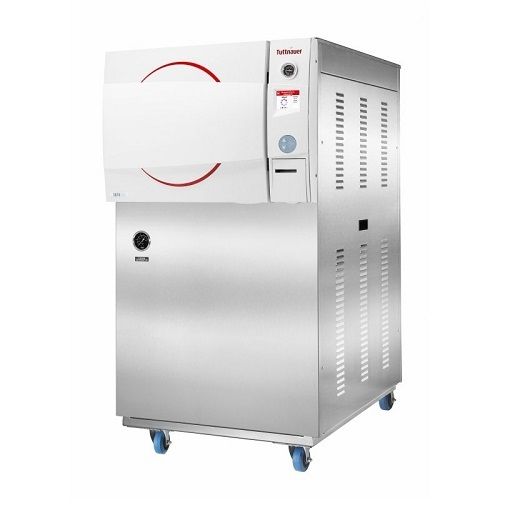

Tuttnauer Pre Post Vacuum Large Capacity Autoclave 3870 HSG
$25,999.00
$34,615.00
In Stock
SKU#: 3870HSG
|
Tuttnauer Pre Post Vacuum Large Capacity Autoclave 3870 HSG A free-standing, cabinet enclosed unit is simple and as easy to use as any tabletop autoclave. The 3870 HSG is a hospital grade Class B autoclave, suitable for large medical & dental clinics, and operating rooms. Designed to be a fast cycle sterilizer that is mobile, operates 24 hours a day, and can optionally operate independent of building utilities. Technical specificationsChamber Dimensions (Ø x L) 384mm x 758mm
Chamber Volume 85 Liter
Overall Dimensions (WxHxD) 720mm x 1365mm x 1180mm
Autoclave Weight 180 kg
Tray Capacity 2 Trays
Tray Dimensions (WxHxD)
Small: 286mm x 25mm x 675mm
Large: 350mm x 25mm x 675mm
Voltage & Frequency 3 phase (1ph option available) 208V, 230V, 400V, 440V, 480V 50-60 Hz
Power 9 kW
Standards
ANSI/AAMI ST-8:2013 Hospital Steam Sterilizers
EN 285: 2006+A2: 2009 - Large Steam Sterilizer
EN 61010-1: 2010 Safety Requirements for measurement control and laboratory use
EN 61326-1: 2013 for EMC Requirements for Electrical Equipment
EN 61010-2-40: 2015 Safety requirements for sterilizers used to treat medical materials
EN ISO 17665-1: 2006 Sterilization of health care products - moist heat
Pressure Vessel
All pressure vessels and boilers are certified according to ASME code section I and section VIII, Div. I and PED 97/23/EC - Pressure Equipment Directive
Quality Standards
Directives
Your data, where you need itThe 3870HSG gives you easy access to its cycle data. Via USB, Ethernet or printer.
USB and Ethernet Ports
A bright multicolor LCD panel with rotating wheel to indicate active cycle
Multiple access levels for added security
Multilingual interface (26 languages)
Generate PDF reports with graphs and tables using optional R.PC.R Software.
|
| Shipping cost | 0 |
|---|---|
| Warranty | Two (2) Years Manufacturer's Warranty |
