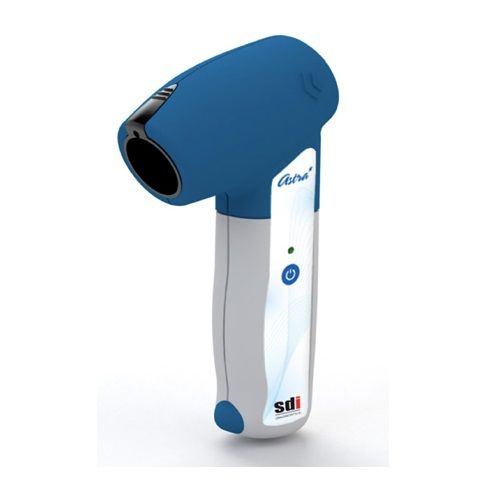

SDI Diagnostics AstraBT Wireless Spirometer 29-5500
The latest innovation from SDI Diagnostics!
Astra BT™ Spirometer is the solution for those searching for a fully-integrated AND wireless spirometer. Complete package includes our AstraPro software.
Astra BT™ Features
Simplicity With Comprehensive Spirometry.
- Powered by two AAA batteries
- Ergonomic handle includes:
- Visual connectivity indicator
- Integrated temperature sensor
- Lanyard
- Power save mode
- Transmit and share data and results with your EMR system
- Meets ATS standards
- NIOSH (National Institute for Occupational Safety and Health) Compliant
- Simultaneous F/V and V/T graphs
AccuFlo™ Digital Turbine
The AccuFlo™ bidirectional turbine with optoelectronic rotary sensor is easily detached for cleaning. Sapphire bearings ensure optimal performance for the life of the turbine. AccuFlo has a unique flow trigger algorithm that allows tidal breathing prior to the patient expiratory effort making the spirometry test easier for the patient and insuring quality test results.
AstraPro™ Software
Choose either Pre- and Post-bronchodilator and bronchial challenge testing or use the incentive program with your pediatric patients or adults. The Astra BT communicates with AstraPro wirelessly via Bluetooth.
Astra BT™ Spirometer
TECHNICAL SPECIFICATIONS
| Forced Parameters Measured |
|
| Forced vital capacity: |
FVC, FEV1, FEV1/FVC, PEF, FEF50%, FEV6, FEV1/FEC, PEF, |
| |
FEF25-75%, FEV6, FEV1/ FEV0.5, PEFT, Vext, FIVC, FIF50%, FEF50/FIF50, |
| |
QC Grades, FEV3, FEV0.5, FEV0.5/FVC, FEV3/FVC, FEV1/VC, FEV1/FEV6, |
| |
FEV1/PEF, FEV1/FIV1, PEF/PIF, FEV25%, FEF25%, FEF75%, FEF75-85%, |
| |
FET25-75%, FET100, FIV1, FIV1/FVC, PIF, MTT, MVV Ind, Lung age |
| |
|
| MVV: |
MVV, Br./min |
| |
|
| Bronchoconstriction: |
FVC, FEV1, PEF, FEF25-75%, PDX |
| |
|
| Relaxed Parameters Measured |
|
| VC: |
VC, TV, ERV, IRV, IC, Ti, Te, Tt, Ti/Tt |
| Maneuvers per patient: |
8 Total; Best test and last test highlighted |
| Interpretation: |
Selectable – Kory, Miller, ATS, NLHEP (Ferguson) |
| Predicted sets: |
Selectable – 20 Total |
| Ethnic correction: |
Selectable – % Actual, Caucasian, Hispanic, African-American |
| Language: |
Selectable – English, Spanish or French |
| |
|
| Measurement Scale (BTPS) |
|
| Flow range |
0–16 L/sec |
| Volume |
0–10 L |
| Measurement method: |
Infrared Interruption via Digital Turbine |
| Dynamic flow resistance: |
<1.5 cm H20/L/sec @ 14 L/sec |
| |
|
| Measurement Precision (BTPS) |
|
| At highest volume: |
+/- 3% or 50 ml |
| At highest flow: |
+/- 5% or 150 ml |
| Time related precision: |
0.5% |
| Volume resolution: |
<6 ml |
| Sampling frequency: |
100 Hz |
| |
|
| Optional |
Calibration syringe |
What does it come with ?
1 x Astra BT Wireless Spirometer
50 x Mouthpieces
1 x Soft Carrying Case
1 x AstraPro EMR Compatible Software
2 x AAA Batteries
1 x Lanyard
User Manual
|
